BrightSign Players/Tablet Network Requirements

UDP broadcasting needs to be enabled at the Head End (switch, router….etc) for the tablet/player connection to work. The BrightSign players need to have communication to the amazonaws url below. Connecting a laptop to the data ports and running the below tests should confirm that the connection is good.

My Awesome Headline

Run these PowerShell commands. Succeeded should result in True for all 3 commands.

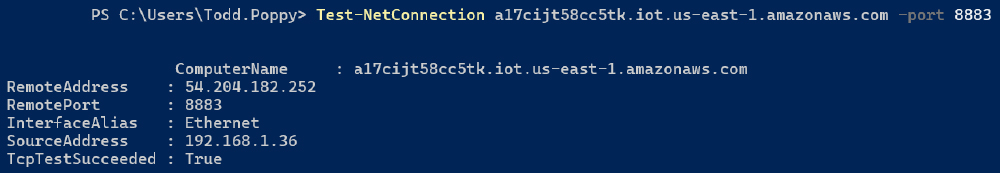

Test-NetConnection a17cijt58cc5tk.iot.us-east-1.amazonaws.com -port 8883

Test-NetConnection a17cijt58cc5tk.iot.us-east-1.amazonaws.com -port 443

Test-NetConnection a17cijt58cc5tk.iot.us-east-1.amazonaws.com -port 80

My Awesome Headline

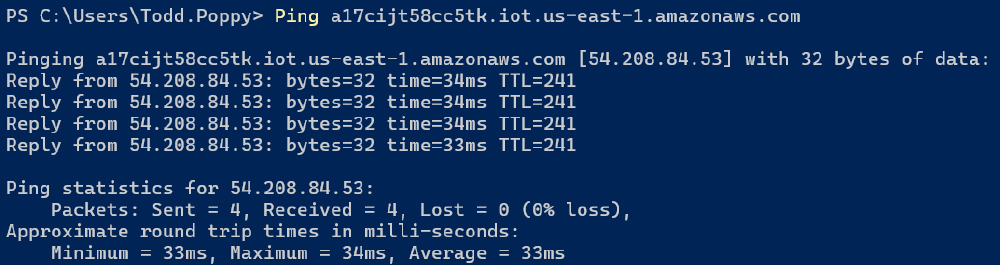

Ping a17cijt58cc5tk.iot.us-east-1.amazonaws.com

Copy the IP address

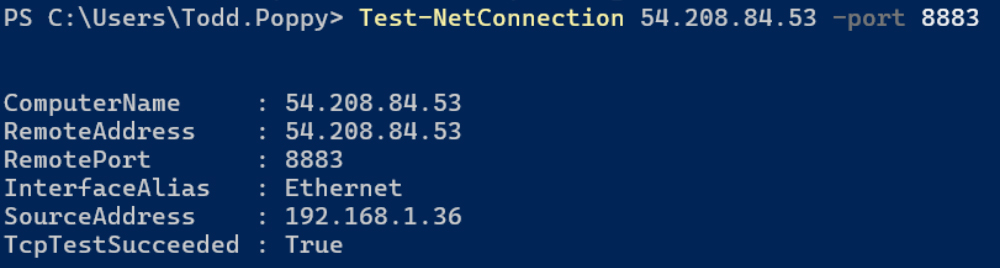

Test-NetConnection <IP address from the first test> -port 8883

Touchscreen PC Network Requirements

  • Connect to *.mbusa.com & *.logmeinrescue.com domain groups
  • Access to port 443 TCP outbound
